Wooden Slate

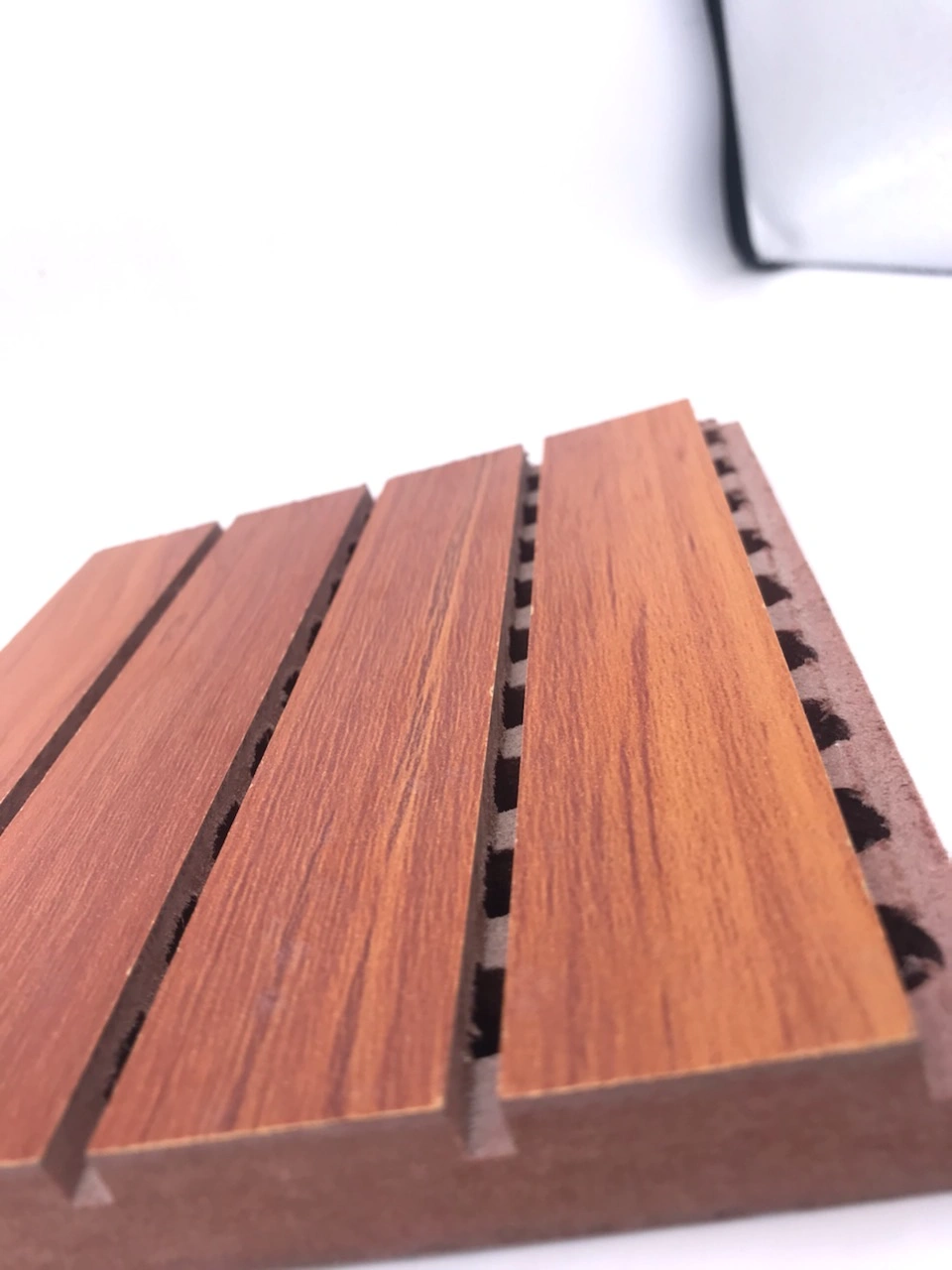

Wooden Grooved Acoustic Panel

Combines the natural beauty of wood with modern design. Surface FR grade B1 with melamine laminate. Tongue and Groove edges for seamless mounting.

Wooden Grooved Acoustic Panel
1 / 5

Density

800 kg/m3 kg/m³

Features

3 Benefits

Technical Specifications

Detailed product dimensions and properties

Standard Size2440mm x 128mm x 15mm
Density (kg/m³)800 kg/m3
Perforation8-10mm diameter circular holes
Type28/4 (28mm Strips, 4mm groove)

Key Benefits

What makes this product special

Tongue & groove mounting
FR B1 melamine surface
Black acoustic fleece backing

Ready to Transform Your Space?

Get expert advice and a customized quotation for your project.

Test Reports

Acoustic Performance Data

Tested as per international standards for sound absorption coefficient

NRC Rating

0.55-0.75

High Performance

Sound Absorption Coefficient by Frequency

1.00.50.0
0.10
0.30
0.55
0.75
0.70
0.65
1252505001k2k4k
Frequency (Hz)

Tested As Per:

ISO: 354-1985ASTM 423-90a

Certifications

International Standards

FR Grade B1

Fire Test

FR Grade B1

Surface Fire Retardant

"MDF panels with melamine laminate, tongue and groove system, black acoustic fleece backing"

Applications

Ideal For

Home Theatre

Create the ultimate cinematic experience at home with professional acoustic treatment for your private screening room.

Cinema Hall

Professional acoustic solutions for multiplexes and cinema theaters ensuring crystal clear audio and immersive experiences.

Auditorium

Complete acoustic solutions for auditoriums ensuring perfect speech intelligibility and musical clarity for every seat.

Recording Studio

Professional-grade acoustic treatment for recording studios, podcast rooms, and broadcast facilities.
