Cement Wood Panel

Cementwood Panel

Cement Panels
THERMOFRIZ offer Cement Finish Panels do not react to metal or concrete, and when plastered with cement, they can be used on an exterior walls, partitions, over deck insulation, in order to keep the area cool in summers and warm in winters. They are extensively been used for roof insulation in all kinds of buildings external cabins such as time offices, security offices telephone booths, and more are also made with these Panels. Our cement finish panels are cost effective and highly durable in nature.

Installation Specifications for Walls/Ceiling
Can be installed on GI metal/ Wooden/ MS frame of 50 x 50mm making a grid of 610 x 610mm c/c. The frame is to be made in proper line after leveling. The panels will be backed with 50mm Sentetic Wadding 1000 GSM inserted inside the grid of 610 x 610mm.


Std. Size: 2000mm x 610mm; 1220mm × 610mm
Other Size: 1200mm × 600mm; 915mm × 610mm; 600mm ×600mm; 595mm × 595mm
Thickness in mm: 10, 13, 15, 20, 25, 40, 50, 75, 100, 150
Density in kg/cuM: 400, 450, 600, 800

Technical Specifications

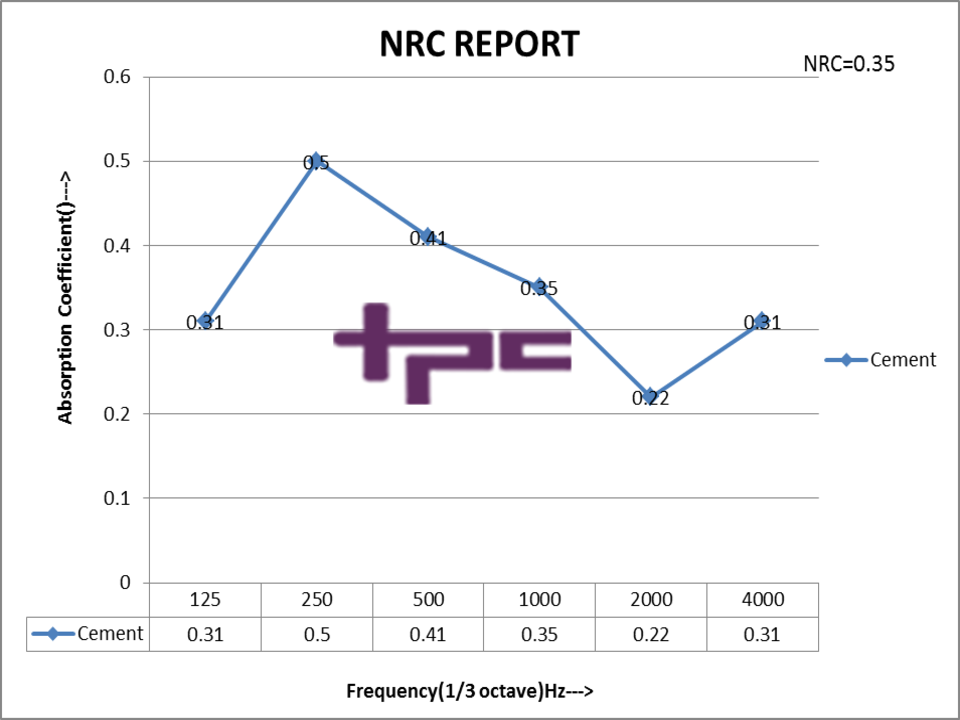

Providing & fixing Thermofriz Acoustic “Cement” Panels made from wood fibers mineralized with magnesite composite many thickness and is of cement colour. Highly recommend for thermal and can be used for inside and outside both, has excellent sound bock result as per ISO: 354 -1985 & ASTM 423-90a. Thermofriz wood wool boards are made as per IS: 3308, BS: 1105 & DIN: 1101. These board are not easily ignitable for which we have a fire test done under BS: 476 Part 5, 6, 7. Weather Test Cycle (B) IS: 9307 Part 7- 1979. Thermal Conductivity Test under BS: 874-1965 .

Different colours of Cement Wood Panel:
